12gpm - 3/4hp Monster WMO Transfer Pump
12gpm - 3/4hp Monster WMO Transfer Pump
Couldn't load pickup availability

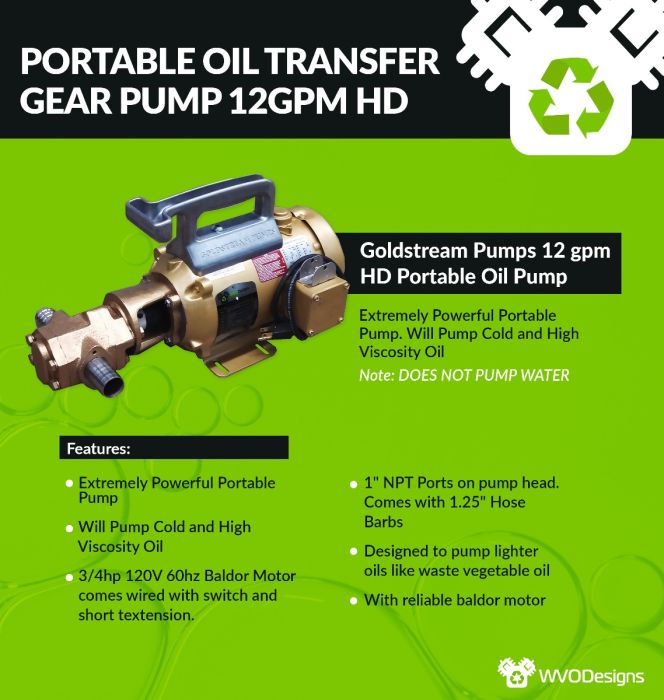

We've gone through 4 years of development on these pumps. Upgrades have included a custom US Made Baldor motor, Viton seals to the pump heads, scrapping troublesome pressure regulators. Additionally, our vegetable oil pumps were not reliable for pumping cold motor oil, so we engineered a new Heavy Duty Oil Pump. Baldor custom made us a robust 1700RPM motor for moving motor oil, gear oil etc. Voila, a portable and fast gear pump for high viscosity fluids.
Heavy Duty Electric Motor
*Reliable - Made in the USA, thermal overload switch, 20yr Lifespan
*Strong - 3/4HP and 4x the Torque of the 3450RPM model
*Beefy - 25lbs
Rock Solid Pumphead
*Fast - 12 gallons per minute
*Beefy - 20lbs Cast Iron
Additional Specs:
*Dimensions: 17" long x 11" wide x 7" tall (43 cm x 28 cm x 18 cm)
*Weight: 45lbs
*Self Priming
*Suction Height: 15ft
*Push Lift Height: 90ft
*Reversible - Rewire or add a switch to allow dual directional flow!
*Viton Seals
*B100 compatible
*Temperature Rating of 400*F
*Duty Cycle: Continuous
*Priming: Self priming
*12gpm(45 liters/min): 1" NPT threaded ports, 1.25" hose barbs
*Pump needs oil to lubricate the gears. Will not work with water.
120v / 220v Convertible - Comes wired for 120v.
